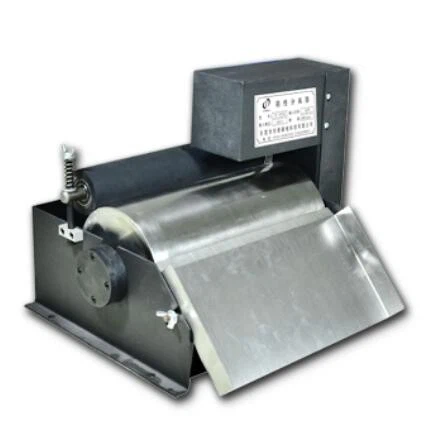

Magnetic Coolant Separator

The magnetic coolant separators are designed to clean the cooling liquids from filings, chips, and other metallic impurities arising in the cutting process.
Coolant magnetic separators are designed for work primarily on grinding machines, other machine tools, and devices with water-based coolants, or straight-cutting oils, to extend the life cycle of machine tools and the cooling fluids. Magnetic Separator for grinding provides increased productivity with less downtime for machine coolant replacement. Magnetic coolant separator is the best solution to perform the machining accurately due to the quality of the surface and the accuracy of the final dimensions.

Remove ferrous material, including sludge and chips, from both water-soluble and neat oils with high-intensity ferrite or rare earth magnets. Typical applications include centerless and heavy stock removal grinding machines, honing, and gear-cutting machinery.
Our Magnetic Coolant Separators employ high-intensity ferrite or rare earth magnets within a fully energized rotating drum to continuously remove ferrous particles from the liquid flow. These systems are often used as a pre-filter to limit contaminants reaching subsequent filtration equipment.

Coolant with iron particles flows by gravity from the grinding machine into the inlet of the separator. The coolant with iron impurities comes into contact with the magnetic drum and separates all iron particles. The continuously purified coolant safeguards the product's surface finish, reduces grinding wheel wear, and extends the service life of the coolant.

Cleaner coolant with a longer service life
Lengthened tool life
Machine accuracy maintained
Reduced machine downtime
Lower cost per workpiece
Low initial cost
Virtually no maintenance cost
No indexing is required to obtain maximum filtration of non-magnetic particles in the coolant
Increased production
Uniform part finish
Reduced pump and machine wear
No wear or baffle adjustment is required due to flow variations

Magnetic separators are well suited to processes where ferrous and non-ferrous contaminants are mixed with water-based coolants or straight-cutting oils. They can also be used to enhance chip processing tasks and help you get the most out of your industrial filtration equipment.

Hot Tags: magnetic coolant separators, manufacturers, suppliers, factory, cross belt magnetic separator, self cleaning permanent magnetic separator, hopper dryer magnet, drum type wet magnetic separator, magnetic pulley belt conveyor, magnetic head pulley

3. Dry powder magnetic medium screen
It is made of SUS430 precision processing and special surface treatment technology. According to the different fluidity, particle size and demagnetization accuracy requirements of materials, various specifications of magnetic media are specially designed. The standard screen gap is 5MM, 7MM, 10MM, 12MM, 15MM, 20MM, etc. Users can make different choices according to the process, and the media can be stacked at different angles. The specially designed structure allows the media to be interspersed and used to meet more working conditions. By allowing the material to contact the magnetic working point more, the iron removal accuracy is improved, while ensuring the stability of the demagnetization effect.
