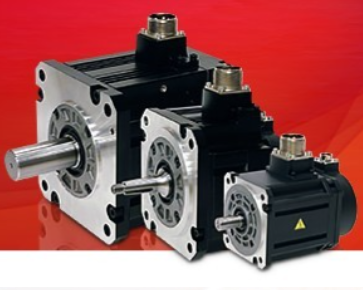

Mitsubishi Servo Motor

• Medium-inertia, high-accuracy and high-speed motors HG Series

• Sensor resolution has been significantly improved. The servo motors, which boast smooth rotation and outstanding acceleration capabilities, are well-suited to serve as feed axes of machine tools.

• Range 0.2 to 9 [kW]

• Maximum rotation speed: 4,000 or 5,000 [r/min]

• Safety support sensors are included as standard specification. Sensor connectors are screw-locked and have enhanced vibration resistance. Three sensor resolutions (i.e., 1, 4 and 67 million pulses/rev) are available.

• This can also be used as a tool spindle motor.

• Small-sized connector allows horizontal cable connection, which helps to save space in machines (Options supported. (Flange size 90SQ only)).

Medium-inertia HF Series

• High-inertia machine accuracy is ensured. Suitable for machines requiring quick acceleration.

• Range 0.5 to 9 [kW]

• Maximum speed 4,000 or 5,000 [r/min]

• Supports three types of detectors with a resolution of 260,000, 1million or 16 million p/rev.

HP Series

• Low-inertia and High-speed servo motor

• Optimal for a machine with high acceleration.

• Range 0.5 to 11 [kW]

• Maximum speed 3,000 or 4,000 [r/min]

• Supports three types of detectors with a resolution of 260,000, 1million or 16 million p/rev.

Low-inertia HF-KP Series

• Suitable for an auxiliary axis that requires high-speed positioning

• Range: 0.1 to 0.75 [kW]

• Maximum speed: 6,000 [r/min]

• Supports a detector with a resolution of 260,000 p/rev.

HC Series

• Medium-inertia and high-accuracy servo motor

• Optimal for ensuring the accuracy of a machine with high-inertia.

• Range 0.5 to 11 [kW]

• Maximum speed 3,000 [r/min]

• Adaptable to both standard detector at 100,000 p/rev and high-accuracy detector at 1 million p/rev. (Note that the lineup is from 0.5 to 3.5 [kW] and only 100,000 p/rev detector when combined with MDS-B-SVJ2 and MDS-R.)

Linear Servo Motor LM-F Series

• Use in clean environments is possible since no ball screws are used, eliminating possible contamination from grease.

• Elimination of transmission mechanisms, including backlash, enables smooth and quiet operation even at high speeds.

• Range Maximum thrust: 900 to 18,000 [N·m]

Direct Drive Servo Motor TM-RB Series

• High-torque, direct-drive motor combined with high-gain control provides quick acceleration and positioning, which makes rotation smoother.

• Suitable for rotary axes that drive tables or spindle heads.

• Range: Maximum torque: 36 to 1,280 [N·m]
