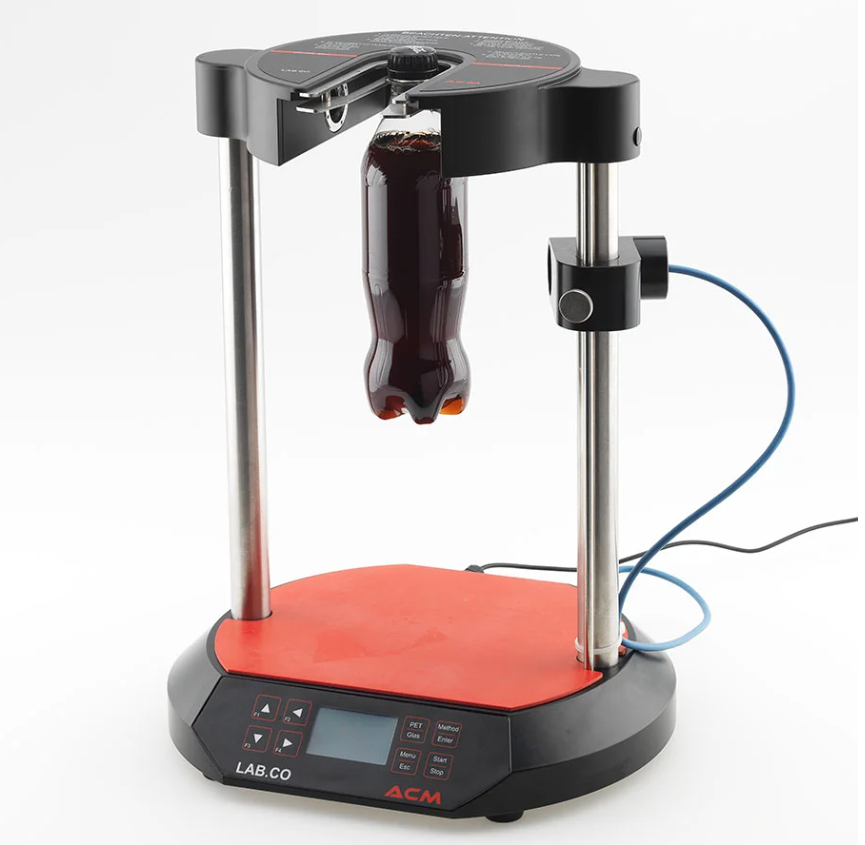

ACM LABORATORY – CO2 MEASURING DEVICE LAB.CO

CO2 measuring instrument LAB.CO for the non-destructive, highly accurate determination of the CO2 content in closed glass and PET bottles.

Keywords
Non-Invasive
Laboratory
Co2
Non-Invasive
Video
Advantages
Very easy handling, as the glass and PET bottles are only inserted into one adapter, therefore no handling error is possible
Very fast measurement time, less than 1 minute
Non-destructive method, the bottle is returned to production after measurement, no piercing necessary; temperature measurement by means of laser technology contact-free;- Very simple calibration procedure. Inspection of original containers during series tests, for long-term tests of shelf life the measurement is always carried out with the same bottle
selective laser technology
No wear costs, as nothing moves; no seals, no shaking during measurement, no filling of measuring chambers, no impellers
Very simple calibration procedure
Technical data

Measuring range: 0 - 10 vol. / 0 - 20 g / l CO2
Measuring accuracy: +/- 0.025 Vol. / 0.05 g/l
Measuring time: less than 1 minute
Display resolution: 0.01
Data interface: for ACM QUATROL systems; all common interfaces possible
Power supply: 24 VDC, 1.5 A
Dimensions: D = 32 cm, H = 56 cm
Weight: 8,20 kg
