Oxylance Sure Cut system JRSC2024S-REG JRSC2000S RSC2000S-REG JRSC2024S

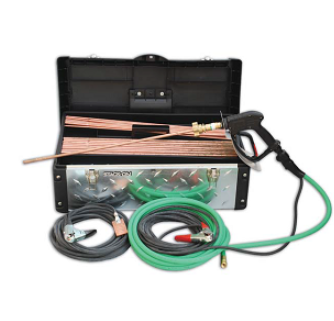

Oxylance JRSC2024S-REG - Tool Box Kit with Standard Holder and 12 each 3/8" x 24" and 12 each 1/4" x 24" Sure Cut Rods with Regulator

Oxylance JRSC2000S - Standard Sure Cut Kit with carrying case (No Rods)

Oxylance JRSC2000S-REG - Standard Sure Cut Kit with carrying case and regulator (No Rods)

Oxylance JRSC2024S - Tool Box Kit with Standard Holder and 12 each 3/8" x 24" and 12 each 1/4" x 24" Sure Cut Rods

25B24 1/4” X 24” Sure Cut Rod (bare) 3 to 5 cfm 1 Minute 7 lbs 14 lbs
25B36 1/4” X 36” Sure Cut Rod (bare) 3 to 5 cfm 1.5 Minutes 11 lbs 22 lbs
25B48 1/4” X 48” Sure Cut Rod (bare) 3 to 5 cfm 2 Minutes 14 lbs 28 lbs

37B24 3/8” X 24” Sure Cut Rod (bare) 7 to 12 cfm 1 Minute 11 lbs 22 lbs
37B36 3/8” X 36” Sure Cut Rod (bare) 7 to 12 cfm 1.5 Minutes 17 lbs 34 lbs
37B48 3/8” X 48” Sure Cut Rod (bare) 7 to 12 cfm 2 Minutes 22 lbs 44 lbs

37B24QC 3/8” X 24” Quick Connect Sure Cut Rod (bare) 7 to 12 cfm 1 Minute 11 lbs 22 lbs
37B36QC 3/8” X 36” Quick Connect Sure Cut Rod (bare) 7 to 12 cfm 1.5 Minutes 17 lbs 34 lbs
37B48QC 3/8” X 48” Quick Connect Sure Cut Rod (bare) 7 to 12 cfm 2 Minutes 22 lbs 44 lbs

18B18 3/16” X 18” Sure Cut Rod (Bare) 18B18I 3/16” X 18” Sure Cut Rod (Insulated)
18B24 3/16” X 24” Sure Cut Rod (Bare) 18B24I 3/16” X 24” Sure Cut Rod (Insulated)
18B36 3/16” X 36” Sure Cut Rod (Bare) 18B36I 3/16” X 36” Sure Cut Rod (Insulated)

1 Handle Assembly
2 Collet Nut
3 Collet for 3/16” (.1875” O.D.)Sure Cut rod’s
3 Collet for 1/4” (.250” O.D.)Sure Cut rod’s
3 Collet for 3/8” (.375” O.D.) Sure Cut rod’s
4 Collet Grommet (seals collet bolt to collet)
5 Collet Bolt (1/4” npt male X Collet seat)
6 Curved Hand Shield
7 Rubber Insulator Grommet for shield
8 OXY0250 Thermal Shuto
10 Power Block
11 3/8” NPT X CGA “B” tting (For custom holder with no power block)
12 HL41X25 25’ Oxygen Hose (5/16” ID)
13 25’ Welding Lead
14 Welding Lead Lug
15 Alligator Clamp
16 Copper Striker Plate
Shield Screw (not shown in drawing)
Shield Tee Nut (not shown in drawing)
Repair parts kit for Oxygen Valve
JRSCBE43HP Collet Bolt Extension
REG-OXY8450
PART # TOOL BOX
JRTB2 26” Tool Box (pictured on previous page)
JRTB3 Large Pelican Case # 1650 with locking handle and wheels
JRCENJ900 Igniter Pack
